LOCATION: HOME - PRODUCTS - Deep Groove Ball Bearings
| Bearing No. |

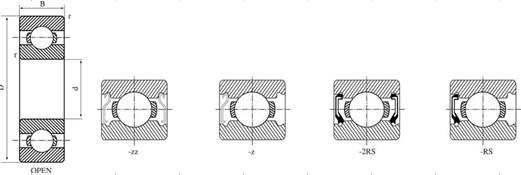

Boundary Dimensions |
|
Basic Load Ratings |
Weight |
| OPEN |
Shields |
Seals |
d |
D |
B |
r min |
Cr |
Cor |
|
|
|
|
mm |
mm |
mm |
mm |
KN |
KN |
kg |
| RLS4 |
ZZ |
2RS |
12.7 |
33.338 |
9.525 |
0.8 |
6.25 |
2.8 |
0.041 |
| RLS5 |
ZZ |
2RS |
15.875 |
39.688 |
11.113 |
0.8 |
9.75 |
4.9 |
0.068 |
| RLS6 |
ZZ |
2RS |
19.05 |
47.625 |
14.288 |
1.6 |
13.1 |
6.8 |
0.113 |
| RLS7 |
ZZ |
2RS |
22.225 |
47.625 |
14.288 |
1.6 |
14.2 |
7.85 |
0.122 |
| RLS8 |
ZZ |
2RS |
25.4 |
57.15 |
15.875 |
1.6 |
18.2 |
9.85 |
0.177 |
| RLS9 |
ZZ |
2RS |
28.575 |
63.5 |
15.875 |
1.6 |
19.8 |
11.5 |
0.277 |
| RLS10 |
ZZ |
2RS |
31.75 |
69.85 |
17.463 |
1.6 |
19.9 |
11.9 |
0.3 |
| RLS11 |
ZZ |
2RS |
34.925 |
76.2 |
17.463 |
1.6 |
21.3 |
13.6 |
0.35 |
| RLS12 |
ZZ |
2RS |
38.1 |
82.55 |
19.05 |
2.4 |
29.7 |
18.2 |
0.45 |
| RLS13 |
ZZ |
2RS |
41.275 |
88.9 |
19.05 |
2.4 |
33.3 |
20.7 |
0.52 |
| RLS 14 |
|
|
44.45 |
95.25 |
20.637 |
2.4 |
35.1 |
23.2 |
0.66 |
| RLS 16 |
|
|
50.8 |
101.6 |
20.637 |
2.4 |
35.1 |
23.2 |
0.7 |
| RLS 18 |
|
|
57.15 |
114.3 |
22.25 |
2.4 |
52.7 |
36 |
0.96 |
| RLS 20 |
|
|
63.5 |
127 |
23.813 |
2.4 |
60.5 |
45 |
1.25 |
| RLS 24 |
|
|
76.2 |
146.05 |
26.988 |
3.2 |
70.2 |
55 |
1.4 |
| RLS 28 |
|
|
88.9 |
165.1 |
28.575 |
3.2 |
95.6 |
73.5 |
2.85 |
| RMS4 |
ZZ |
2RS |
12.7 |
41.275 |
15.875 |
1.6 |
9.65 |
4.5 |
0.1 |
| RMS5 |
ZZ |
2RS |
15.875 |
46.038 |
15.875 |
1.6 |
11.8 |
5.65 |
0.122 |
| RMS6 |
ZZ |
2RS |
19.05 |
50.8 |
17.462 |
1.6 |
14.1 |
6.95 |
0.163 |
| RMS7 |
ZZ |
2RS |
22.225 |
57.15 |
17.462 |
2.4 |
18.95 |
9.55 |
0.204 |
| RMS8 |
ZZ |
2RS |
25.4 |
63.5 |
19.05 |
2.4 |
21 |
11.5 |
0.258 |
| RMS9 |
ZZ |
2RS |
28.575 |
71.438 |
20.638 |
2.4 |
27.2 |
15.3 |
0.39 |
| RMS10 |
ZZ |
2RS |
31.75 |
79.375 |
22.225 |
2.4 |
30.6 |
17.5 |
0.47 |
| RMS 11 |
|
|
34.925 |
88.9 |
22.225 |
2.4 |
41 |
24 |
0.63 |
| RMS 12 |
|
|
38.1 |
95.25 |
23.813 |
2.4 |
41 |
24 |
0.79 |
| RMS 13 |
|
|
41.275 |
101.6 |
23.813 |
2.4 |
52.7 |
31.5 |
0.91 |
| RMS 14 |
|
|
44.45 |
107.95 |
26.988 |
2.4 |
61.8 |
38 |
1.15 |
| RMS 18 |
|
|
57.15 |
127 |
31.75 |
3.2 |
81.9 |
52 |
1.7 |
| RMS 20 |
|
|
63.5 |
139.7 |
31.75 |
3.2 |
92.3 |
60 |
2.05 |
| RMS 22 |
|
|
69.85 |
158.75 |
34.925 |
3.2 |
104 |
68 |
3 |
| RMS 24 |
|
|
76.2 |
177.8 |
39.688 |
4 |
124 |
86.5 |
4.4 |
| RMS 28 |
|
|
88.9 |
206.375 |
44.45 |
4 |
153 |
117 |
6.5 |
| RMS 36 |
|
|
114.3 |
238.125 |
50.8 |
4.8 |
203 |
180 |
8.9 |
