Thrust Ball Bearings - 51100

PRODUCTS

LOCATION: HOME - PRODUCTS - Thrust Ball Bearings

51100

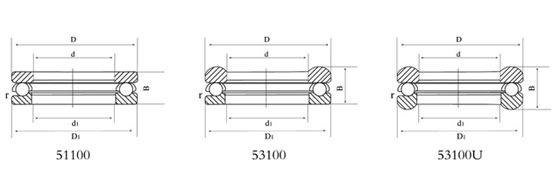

Bearing No.			Boundary Dimensions				Basic Load Ratings		Limiting Speed		Weight
Bearing No.			Boundary Dimensions				Basic Load Ratings		Limiting Speed		Weight
51000	53000	53000U	d	D	B	r min	Cr	Cor	Grease	Oil	51000
51000	53000	53000U	mm	mm	mm	mm	KN	KN	rpm	rpm	kg
51100	53100	53100U	10	24	9	0.3	10	14	6500	10000	0.02
51101	53101	53101U	12	26	9	0.3	10.3	15.4	6500	10000	0.022
51102	53102	53102U	15	28	9	0.3	10.5	16.8	6100	9400	0.024
51103	53103	53103U	17	30	9	0.3	10.5	18.2	6100	9400	0.028
51104	53104	53104U	20	35	10	0.3	14.2	24.7	5100	7900	0.04
51105	53105	53105U	25	42	11	0.6	19.5	37.2	4400	6800	0.059
51106	53106	53106U	30	47	11	0.6	20.4	42.2	4300	6600	0.068
51107	53107	53107U	35	52	12	0.6	20.4	44.7	3900	60000	0.09
51108	53108	53108U	40	60	13	0.6	26.9	62.8	3400	5300	0.12
51109	53109	53109U	45	65	14	0.6	27.8	69.1	3200	5000	0.15
51110	53110	53110U	50	70	14	0.6	28.8	75.4	3100	4800	0.16
51111	53111	53111U	55	78	16	0.6	34.8	93.1	2800	4300	0.24
51112	53112	53112U	60	85	17	1	41.4	113	2600	4000	0.29
51113	53113	53113U	65	90	18	1	41.7	117	2400	3700	0.34
51114	53114	53114U	70	95	18	1	43	127	2300	3600	0.36
51115	53115	53115U	75	100	19	1	42.3	127	2200	3400	0.42
51116	53116	53116U	80	105	19	1	44.6	141	2100	3300	0.43
51117	53117	53117U	85	110	19	1	45.9	150	2100	3200	0.46
51118	53118	53118U	90	120	22	1	59.7	190	1900	2900	0.68
51120	53120	53120U	100	135	25	1	85	268	1600	2500	0.99
51122	53122	53122U	110	145	25	1	87.1	288	1600	2400	1.08
51124	53124	53124U	120	155	25	1	89	308	1500	2300	1.16
51126	53126	53126U	130	170	30	1	104	352	1300	20000	1.87
51128	53128	53128U	140	180	31	1	107	377	1200	1900	2.02
51130	53130	53130U	150	190	31	1	109	402	1200	1900	2.15
51132	53132	53132U	160	200	31	1	112	427	1200	1800	2.28
