Self-Aligning Ball Bearings - 1200

PRODUCTS

LOCATION: HOME - PRODUCTS - Self-Aligning Ball Bearings

1200

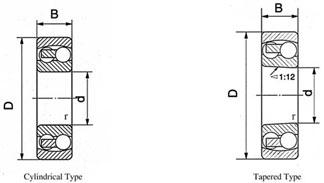

Bearing No.		Boundary Dimensions (mm)				Limiting Speed		Basic Load Rating(KN)		Weight Kg(pc)

Cylindrical Bore	Tapered Bore					Grease	Oil	Dynamic	Static	Cylindrical	Tapered
Cylindrical Bore	Tapered Bore	d	D	B	r (min.)	r/min	r/min	Cr	Cor	Bore	Bore
108		8	22	7	0.3	26000	33000	2.6	0.56	0.014
126		6	19	6	0.3	30000	37000	2.5	0.48	0.009
127		7	22	7	0.3	27000	33000	2.65	0.56	0.014
129		9	26	8	0.6	23000	29000	3.8	0.8	0.022
135		5	19	6	0.3	30000	37000	2.55	0.48	0.009
1200		10	30	9	0.6	23000	28000	5.5	1.2	0.034
1201		12	32	10	0.6	21000	26000	5.6	1.25	0.04
1202		15	35	11	0.6	18000	22000	7.45	1.75	0.049
1203		17	40	12	0.6	16000	20000	7.9	2	0.073
1204	1204K	20	47	14	1	14000	17000	9.9	2.6	0.12	0.118
1205	1205K	25	52	15	1	12000	14000	12.1	3.3	0.141	0.138
1206	1206K	30	62	16	1	9900	12000	15.6	4.65	0.22	0.216
1207	1207K	35	72	17	1.1	8500	10000	15.8	5.1	0.323	0.317
1208	1208K	40	80	18	1.1	7500	9200	19.2	6.5	0.417	0.411
1209	1209K	45	85	19	1.1	7000	8500	21.8	7.35	0.465	0.459
1210	1210K	50	90	20	1.1	6500	7900	22.7	8.1	0.525	0.515
1211	1211K	55	100	21	1.5	5800	7100	26.8	10	0.705	0.693
1212	1212K	60	110	22	1.5	5200	6400	30.2	11.5	0.9	0.885
1213	1213K	65	120	23	1.5	4800	5800	31	12.5	1.15	1.13
1214	1214K	70	125	24	1.5	4600	5700	34.6	13.8	1.26
1215	1215K	75	130	25	1.5	4300	5300	38.8	15.7	1.36	1.34
1216	1216K	80	140	26	2	4000	4900	39.8	17	1.67	1.64
1217	1217K	85	150	28	2	3800	4600	49.2	20.8	2.07	2.04
1218	1218K	90	160	30	2	3500	4300	56.8	23.4	2.52	2.48
1219	1219K	95	170	32	2.1	3300	4000	57	24.3	3.1	3.05
1220	1220K	100	180	34	2.1	3100	3800	69	29.7	3.7	3.64
1221		105	190	36	2.1	2900	3600	77	34	4.37
1222	1222K	110	200	38	2.1	2800	3400	80.2	35.2	5.15	5.07
