Self-Aligning Ball Bearings - 1300

PRODUCTS

LOCATION: HOME - PRODUCTS - Self-Aligning Ball Bearings

1300

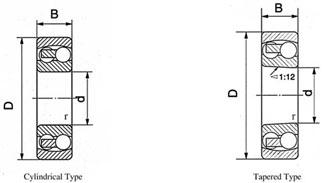

Bearing No.		Boundary Dimensions (mm) 外形尺寸				Limiting Speed		Basic Load Rating(KN)		Weight Kg(pc)
轴承型号						极限转速		额定负荷		重量
Cylindrical Bore	Tapered Bore					Grease	Oil	Dynamic	Static	Cylindrical	Tapered
Cylindrical Bore	Tapered Bore	d	D	B	r (min.)	r/min	r/min	Cr	Cor	Bore	Bore
1300		10	35	11	0.6	20000	24000	7.25	1.6	0.058
1301		12	37	12	1	18000	22000	9.4	2.15	0.067
1302		15	42	13	1	16000	20000	9.55	2.3	0.094
1303		17	47	14	1	14000	17000	12.5	3.2	0.13
1304	1304K	20	52	15	1.1	13000	15000	12.4	3.3	0.163	0.161
1305	1305K	25	62	17	1.1	9900	12000	18	5	0.257	0.252
1306	1306K	30	72	19	1.1	8700	11000	21.3	6.3	0.387	0.381
1307	1307K	35	80	21	1.5	7600	9300	25.1	7.85	0.51	0.502
1308	1308K	40	90	23	1.5	6900	8400	29.5	9.7	0.715	0.704
1309	1309K	45	100	25	1.5	6100	7500	38.1	12.7	0.957	0.942
1310	1310K	50	110	27	2	5600	6800	43.4	14.1	1.21	1.19
1311	1311K	55	120	29	2	5000	6200	51.3	17.9	1.58	1.56
1312	1312K	60	130	31	2.1	4500	5500	57.2	20.8	1.96	1.93
1313	1313K	65	140	33	2.1	4300	5200	61.7	22.9	2.45	2.41
1314	1314K	70	150	35	2.1	4000	4900	74	27.7	2.99
1315	1315K	75	160	37	2.1	4000	4900	78.9	29.9	3.56	3.51
1316	1316K	80	170	39	2.1	3500	4300	88.1	33.1	4.18	4.12
1317	1317K	85	180	41	3	3300	4000	97.3	37.8	4.98	4.91
1318	1318K	90	190	43	3	3100	3800	116	44.4	5.8	5.71
1319	1319K	95	200	45	3	2900	3600	132	50.8	6.69	6.59
1320	1320K	100	215	47	3	2800	3400	143	57.3	8.3	8.19
1321		105	225	49	3	2600	3200	149	60.2	10
1322	1322K	110	240	50	3	2400	3000	150	63.2	11.8	11.7
