Self-Aligning Ball Bearings - 2200

PRODUCTS

LOCATION: HOME - PRODUCTS - Self-Aligning Ball Bearings

2200

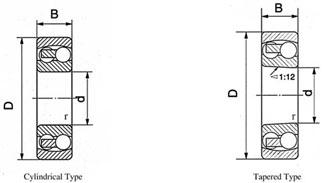

Bearing No.		Boundary Dimensions (mm) 外形尺寸				Limiting Speed		Basic Load Rating(KN)		Weight Kg(pc)
轴承型号						极限转速		额定负荷		重量
Cylindrical Bore	Tapered Bore					Grease	Oil	Dynamic	Static	Cylindrical	Tapered
Cylindrical Bore	Tapered Bore	d	D	B	r (min.)	r/min	r/min	Cr	Cor	Bore	Bore
2200		10	30	14	0.6	23000	29000	7.4	1.6	0.047
2201		12	32	14	0.6	21000	26000	7.65	1.75	0.053
2202		15	35	14	0.6	18000	22000	7.7	1.85	0.06
2203		17	40	16	0.6	16000	20000	9.8	2.4	0.088
2204	2204K	20	47	18	1	14000	17000	12.6	3.3	0.14	0.136
2205	2205K	25	52	18	1	12000	15000	12.6	3.3	0.163	0.158
2206	2206K	30	62	20	1	10000	12000	15.6	4.65	0.26	0.254
2207	2207K	35	72	23	1.1	8500	10000	21.6	6.6	0.403	0.396
2208	2208K	40	80	23	1.1	7600	9300	22.4	7.4	0.505	0.494
2209	2209K	45	85	23	1.1	7000	8500	23.3	8.15	0.545	0.533
2210	2210K	50	90	23	1.1	6500	7900	23.3	8.5	0.59	0.577
2211	2211K	55	100	25	1.5	5800	7100	26.8	10	0.81	0.792
2212	2212K	60	110	28	1.5	5300	6500	34.1	12.6	1.09	1.07
2213	2213K	65	120	31	1.5	4900	5900	43.5	16.4	1.46	1.43
2214	2214K	70	125	31	1.5	4600	5600	43.9	17.1	1.52
2215	2215K	75	130	31	1.5	4300	5300	44.2	17.8	1.62	1.58
2216	2216K	80	140	33	2	4100	5000	49	19.9	2.01	1.97
2217	2217K	85	150	36	2	3800	4600	58.3	23.6	2.52	2.46
2218	2218K	90	160	40	2	3500	4300	67.7	27.2	3.4	3.33
2219	2219K	95	170	43	2.1	3300	4000	82.7	34.3	4.1	4
2220	2220K	100	180	46	2.1	3100	3800	80.9	34	4.98	4.87
2221		105	190	50	2.1	3000	3600	94.9	40.1	6.07
2222	2222K	110	200	53	2.1	2800	3400	120	48.9	7.1	6.94
