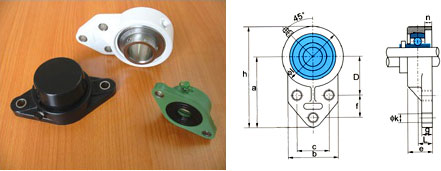

TYPE | d | a | b | c | D | e | f | g | h | i | k | n | W |
(mm) | kg | ||||||||||||
FB201 | 12 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 10.7 | 12.7 | 0.08 |
FB202 | 15 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 10.7 | 12.7 | 0.08 |
FB203 | 17 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 10.7 | 12.7 | 0.08 |
FB204 | 20 | 76.2 | 62 | 38.1 | 42.9 | 33.7 | 22.2 | 11.4 | 108 | 63.5 | 10.7 | 12.7 | 0.08 |
FB205 | 25 | 85.7 | 63.5 | 41.3 | 46 | 41.2 | 28.6 | 11.4 | 120.6 | 70 | 10.7 | 14.3 | 0.11 |
FB206 | 30 | 96.5 | 76 | 47.6 | 52.4 | 41.5 | 31.8 | 13.3 | 138.5 | 83 | 10.7 | 15.9 | 0.16 |
FB207 | 35 | 109.5 | 89 | 50.8 | 60.3 | 47.1 | 31.8 | 16.1 | 157 | 95 | 13.1 | 17.5 | 0.23 |
