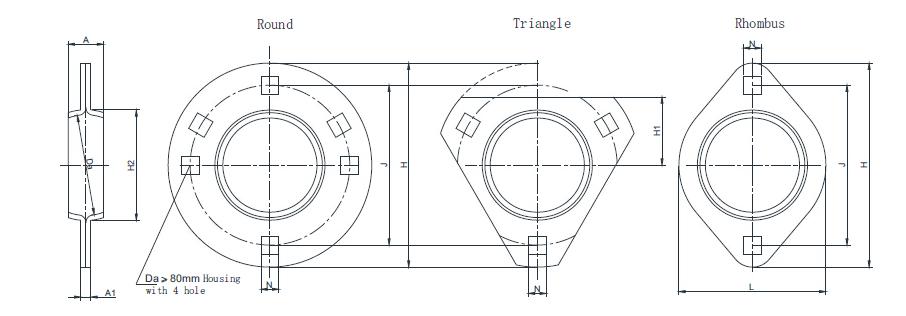

PFL-PF-PFT

Housing No.			Da	H max	L max	A max	J 0.4	A1 max	H1 max	H2 max	N 0.25
Round	Triangle	Rhombus	Da	H max	L max	A max	J 0.4	A1 max	H1 max	H2 max	N 0.25
PF203	PFT203	PFL203	40	82	60	15	63.5	4.5	29	49	7.1
PF204	PFT204	PFL204	47	91	68	17	71.5	4.5	34	56	9
PF205	PFT205	PFL205	52	96	72	19	76	4.5	36	61	9
PF206	PFT206	PFL206	62	114	82	20	90.5	5.5	41	72	11
PF207	PFT207	PFL207	72	127	95	23	100	5.5	45	81	11
PF208			80	149		23	119	7		91	13.5
PF209			85	150		23	120.5	7		98	13.5
PF210			90	157		25	127	8		102	13.5
PF211			100	168		26	138	8		113	13.5
PF212			110	177		28	148	8		122	13.5
