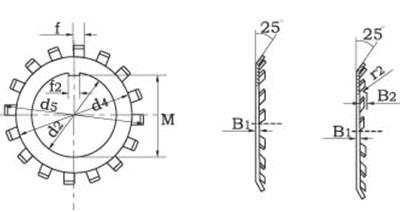

Lock washer Dimensions(mm) Weight (kg)
d2 d5 M f1 Max B1
MB00 10 21 8.5 3 1 0.131
MB01 12 25 10.5 3 1 0.192
MB02 15 28 13.5 4 1 0.253
MB03 17 32 15.5 4 1 0.313
MB04 20 36 18.5 4 1 0.35
MB05 25 42 23 5 1.25 0.64
MB06 30 49 27.5 5 1.25 0.78
MB07 35 57 32.5 5 1.25 1.04
MB08 40 62 37.5 6 1.25 1.23
MB09 45 69 42.5 6 1.25 1.52
MB10 50 74 47.5 6 1.25 1.6
MB11 55 81 52.5 7 1.5 1.96
MB12 60 86 57.5 7 1.5 2.53
MB13 65 92 62.5 7 1.5 2.9
MB14 70 98 66.5 8 1.5 3.34
MB15 75 104 71.5 8 1.5 3.56
MB16 80 112 76.5 8 1.8 4.64
MB17 85 119 81.5 8 1.8 5.24
MB18 90 126 86.5 10 1.8 6.23
MB19 95 133 91.5 10 1.8 6.7
MB20 100 142 96.5 12 1.8 7.65
MB21 105 145 100.5 12 1.8 8.26
MB22 110 154 105.5 132 1.8 9.4
MB23 115 159 110.5 12 2 10.8
MB24 120 164 115 14 2 10.5
MB25 125 170 120 14 2 11.8
Lock washer Dimensions(mm) Weight (kg)
d2 d5 M f1 Max B1
MB26 130 175 125 14 2 11.3
MB27 135 185 130 14 2 14.4
MB28 140 192 130.5 16 2 14.2
MB29 145 202 140 16 2 16.8
MB30 150 205 145 16 2 15.5
MB31 155 212 147.5 16 2.5 20.9
MB32 160 217 154 18 2.5 22.2
MB33 165 222 157.5 18 2.5 24.1
MB34 170 232 164 18 2.5 24.7
MB36 180 242 174 20 2.5 26.8
MB38 190 252 184 20 2.5 27.8
MB40 200 262 194 20 2.5 29.3
MB44 220 292 213 24 3
MB48 240 312 233 24 3
MB52 260 342 253 28 3
MB56 280 362 273 28 3
