H300

CONTACT US

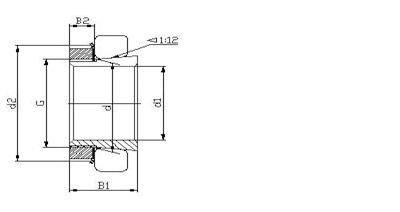

Adapter Shaftd1 Dimensions(mm) Weight Composition
Sleeve HS HA HE H d d2 B1 B2 G (kg) Sleeve Lock nut Lock washer
in in in mm
H304 17 20 32 28 7 M20x1 0.045 A304 KM4 MB04
H305 7/8 13/16 42798 20 25 38 29 8 M25x1.5 0.075 A305 KM5 MB05
H306 7/8 15/16 1 25 30 45 31 8 M30x1.5 0.11 A306 KM6 MB06
H307 1 -1/8 1-3/16 1-1/4 30 35 52 35 9 M35x1.5 0.14 A307 KM7 MB07
H308 1- 3/8 1-5/16 1-1/4 35 40 58 36 10 M40x1.5 0.19 A308 KM8 MB08
H309 1-5/8 1-7/16 1-1/2 40 45 65 39 11 M45x1.5 0.25 A309 KM9 MB09
H310 1-5/8 1-11/16 1-3/4 45 50 70 42 12 M50x1.5 0.3 A310 KM10 MB10
H311 1-7/8 1-15/16 2 50 55 75 45 12 M55x2 0.35 A311 KM11 MB11
H312 2-1/8 2-1/16 2-1/4 55 60 80 47 13 M60x2 0.39 A312 KM12 MB12
H313 2-3/8 2-3/16 2-1/4 60 65 85 50 14 M65x2 0.46 A313 KM13 MB13
H314 60 70 92 52 14 M70x2 0.72 A314 KM14 MB14
H315 2-5/8 2-7/16 2-1/2 65 75 98 55 15 M75x2 0.83 A315 KM15 MB15
H316 2-7/8 2-11/16 2-3/4 70 80 105 59 17 M80x2 1 A316 KM16 MB16
H317 2-15/16 3 75 85 110 63 18 M85x2 1.2 A317 KM17 MB17
H318 3-1/8 3-3/16 3-1/4 80 90 120 65 18 M90x2 1.35 A318 KM18 MB18
H319 3-5/16 3-1/4 85 95 125 68 19 M95x2 1.55 A319 KM19 MB19
H320 3-7/16 3-1/2 90 100 130 71 20 M100x2 1.7 A320 KM20 MB20
H321 95 105 140 74 20 M105x2 1.95 A321 KM21 MB21
H322 3-15/16 4 100 110 145 77 21 M110x2 2.2 A322 KM22 MB22
