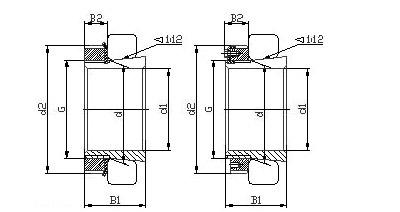

| Adapter | Shaft d1 | Dimensions(mm) | Weight | Composition | ||||||||||
| Sleeve | H | HE | HS | HA | d | d2 | B1 | B2 | G | (kg) | Sleeve | Lock nut | Lock washer | Lock card |
| mm | in | in | in | |||||||||||
| H2304 | 17 | 20 | 32 | 31 | 7 | M20กม1 | 0.049 | A2304 | KM04 | MB04 | ||||
| H2305 | 20 | 3/4 | 7/8 | 13/16 | 25 | 38 | 35 | 8 | M25กม1.5 | 0.087 | A2305 | KM05 | MB05 | |
| H2306 | 25 | 1 | 7/8 | 15/16 | 30 | 45 | 38 | 8 | M30กม1.5 | 0.126 | A2306 | KM06 | MB06 | |
| H2307 | 30 | 1-1/4 | 1-1/8 | 1-3/16 | 35 | 52 | 43 | 9 | M35กม1.5 | 0.17 | A2307 | KM07 | MB07 | |
| H2308 | 35 | 1-1/4 | 1-3/8 | 1-5/16 | 40 | 58 | 46 | 10 | M40กม1.5 | 0.224 | A2308 | KM08 | MB08 | |
| H2309 | 40 | 1-1/2 | 1-5/8 | 1-7/16 | 45 | 65 | 50 | 11 | M45กม1.5 | 0.28 | A2309 | KM09 | MB09 | |
| H2310 | 45 | 1-5/8 | 1-11/16 | 1-3/4 | 50 | 70 | 55 | 12 | M50กม1.5 | 0.362 | A2310 | KM10 | MB10 | |
| H2311 | 50 | 2 | 1-7/8 | 1-15/16 | 55 | 75 | 59 | 12 | M55กม2 | 0.42 | A2311 | KM11 | MB11 | |
| H2312 | 55 | 2-1/4 | 2-1/8 | 2-1/16 | 60 | 80 | 62 | 13 | M60กม2 | 481 | A2312 | KM12 | MB12 | |
| H2313 | 60 | 2-1/4 | 2-3/8 | 2-3/16 | 65 | 85 | 65 | 14 | M65กม2 | 0.557 | A2313 | KM13 | MB13 | |
| H2314 | 60 | 70 | 92 | 68 | 14 | M70กม2 | 0.9 | A2314 | KM14 | MB14 | ||||
| H2315 | 65 | 2-1/2 | 2-5/8 | 2-7/16 | 75 | 98 | 73 | 15 | M75กม2 | 1.05 | A2315 | KM15 | MB15 | |
| H2316 | 70 | 2-3/4 | 2-7/8 | 2-11/16 | 80 | 105 | 78 | 17 | M80กม2 | 1.28 | A2316 | KM16 | MB16 | |
| H2317 | 75 | 3 | 2-15/16 | 85 | 110 | 82 | 18 | M85กม2 | 1.45 | A2317 | KM17 | MB17 | ||
| H2318 | 80 | 3-1/4 | 3-1/8 | 3-3/16 | 90 | 120 | 86 | 18 | M90กม2 | 1.69 | A2318 | KM18 | MB18 | |
| H2319 | 85 | 3-1/4 | 3-5/16 | 95 | 125 | 90 | 19 | M95กม2 | 1.92 | A2319 | KM19 | MB19 | ||
| H2320 | 90 | 3-1/2 | 3-7/16 | 100 | 130 | 97 | 20 | M100กม2 | 2.15 | A2320 | KM20 | MB20 | ||
| H2321 | 95 | 105 | 140 | 101 | 20 | M105กม2 | 2.46 | A2321 | KM21 | MB21 | ||||
| H2322 | 100 | 4 | 3-15/16 | 110 | 145 | 105 | 21 | M110กม2 | 2.75 | A2322 | KM22 | MB22 | ||
| H2324 | 110 | 4-1/4 | 4-3/16 | 120 | 155 | 112 | 22 | M120กม2 | 3.2 | A2324 | KM24 | MB24 | ||
| H2326 | 115 | 4-1/2 | 4-7/16 | 130 | 165 | 121 | 23 | M130กม2 | 4.6 | A2326 | KM26 | MB26 | ||
| H2328 | 125 | 5 | 4-13/16 | 4-15/16 | 140 | 180 | 131 | 24 | M140กม2 | 5.55 | A2328 | KM28 | MB28 | |
| H2330 | 135 | 5-1/4 | 5-3/16 | 150 | 195 | 139 | 26 | M150กม2 | 6.63 | A2330 | KM30 | MB30 | ||
| H2332 | 140 | 5-1/2 | 5-7/16 | 160 | 210 | 147 | 28 | M160กม3 | 9.15 | A2332 | KM32 | MB32 | ||
| H2334 | 150 | 6 | 5-15/16 | 170 | 220 | 154 | 29 | M170กม3 | 10.2 | A2334 | KM34 | MB34 | ||
| H2336 | 160 | 6-1/2 | 6-7/16 | 180 | 230 | 161 | 30 | M180กม3 | 11.3 | A2336 | KM36 | MB36 | ||
| H2338 | 170 | 6-3/4 | 6-15/16 | 190 | 240 | 169 | 31 | M190กม3 | 12.6 | A2338 | KM38 | MB38 | ||
| H2340 | 180 | 7 | 7-3/16 | 200 | 250 | 176 | 32 | M200กม3 | 14 | A2340 | KM40 | MB40 | ||
| H2344 | 200 | 220 | 280 | 186 | 44 | T220กม4 | 16.7 | A2344 | HM44 | MS44 | ||||
| H2348 | 220 | 240 | 300 | 199 | 46 | T240กม4 | 29.7 | A2348 | HM48 | MS48 | ||||
| H2352 | 240 | 260 | 330 | 211 | 49 | T260กม4 | 24.2 | A2352 | HM52 | MS52 | ||||
| H2356 | 260 | 280 | 350 | 224 | 51 | T280กม4 | 27.8 | A2356 | HM56 | MS56 | ||||
