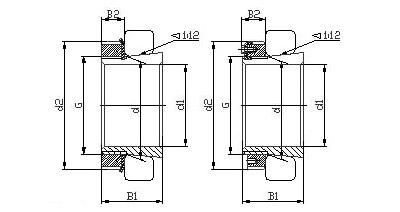

| Adapter | Shaft d1 | Dimensions(mm) | Weight | Composition | |||||||||
| Sleeve | H | HE | HA | d | d2 | B1 | B2 | G | (kg) | Sleeve | Lock nut | Lock washer | Lock card |
| mm | in | in | |||||||||||
| H3120 | 90 | 2003-1-2 | 2003-7-16 | 100 | 130 | 76 | 20 | M100กม2 | 1.8 | A3120 | KM20 | MB20 | |
| H3122 | 100 | 4 | 3-15/16 | 110 | 145 | 81 | 21 | M110กม2 | 2.4 | A3122 | KM22 | MB22 | |
| H3124 | 110 | 2004-1-4 | 2004-3-16 | 120 | 155 | 88 | 22 | M120กม2 | 2.65 | A3124 | KM24 | MB24 | |
| H3126 | 115 | 2004-1-2 | 2004-7-16 | 130 | 165 | 92 | 23 | M130กม2 | 3.65 | A3126 | KM26 | MB26 | |
| H3128 | 125 | 5 | 4-15/16 | 140 | 180 | 97 | 24 | M140กม2 | 4.35 | A3128 | KM28 | MB28 | |
| H3130 | 135 | 2005-1-4 | 2005-3-16 | 150 | 195 | 111 | 26 | M150กม2 | 5.5 | A3130 | KM30 | MB30 | |
| H3132 | 140 | 2005-1-2 | 2005-7-16 | 160 | 210 | 119 | 28 | M160กม3 | 7.65 | A3132 | KM32 | MB32 | |
| H3134 | 150 | 6 | 5-15/16 | 170 | 220 | 122 | 29 | M170กม3 | 8.4 | A3134 | KM34 | MB34 | |
| H3136 | 160 | 2006-1-2 | 2006-7-16 | 180 | 230 | 131 | 30 | M180กม3 | 9.5 | A3136 | KM36 | MB36 | |
| H3138 | 170 | 2006-3-4 | 6-15/16 | 190 | 240 | 141 | 31 | M190กม3 | 11 | A3138 | KM38 | MB38 | |
| H3140 | 180 | 7 | 2007-3-16 | 200 | 250 | 150 | 32 | M200กม3 | 12 | A3140 | KM40 | MB40 | |
| H3144 | 200 | 7-15/16 | 220 | 280 | 161 | 44 | T220กม4 | 15 | A3144 | KM44 | MS44 | ||
| H3148 | 220 | 240 | 300 | 172 | 46 | T240กม4 | 18 | A3148 | KM48 | MS48 | |||
| H3152 | 240 | 260 | 330 | 190 | 49 | T260กม4 | 22.5 | A3152 | KM52 | MS52 | |||
| H3156 | 260 | 280 | 350 | 195 | 51 | T280กม4 | 25 | A3156 | KM56 | MS56 | |||
| H3160 | 280 | 300 | 380 | 208 | 53 | T300กม4 | 30 | A3160 | KM60 | MS60 | |||
| H3164 | 300 | 320 | 400 | 226 | 56 | T320กม5 | 35 | A3164 | KM64 | MS64 | |||
| H3168 | 320 | 340 | 440 | 254 | 72 | T340กม5 | A3168 | KM68 | MS68 | ||||
| H3172 | 340 | 360 | 460 | 259 | 75 | T360กม5 | A3172 | KM72 | MS72 | ||||
| H3176 | 360 | 380 | 490 | 264 | 77 | T380กม5 | A3176 | KM76 | MS76 | ||||
| H3180 | 380 | 400 | 520 | 272 | 82 | T400กม5 | A3180 | KM80 | MS80 | ||||
| H3184 | 400 | 420 | 540 | 304 | 90 | T420กม5 | A3184 | KM84 | MS84 | ||||
| H3188 | 410 | 440 | 560 | 307 | 90 | T440กม5 | A3188 | KM88 | MS88 | ||||
| H3192 | 430 | 460 | 580 | 326 | 95 | T460กม5 | A3192 | KM92 | MS92 | ||||
| H3196 | 450 | 480 | 620 | 335 | 95 | T480กม5 | A3196 | KM96 | MS96 | ||||
