AH3100

CONTACT US

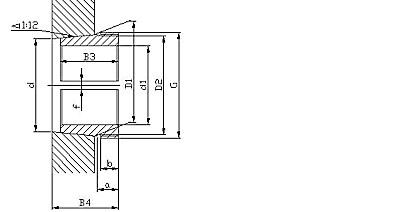

Adapter Dimensions(mm) Weight Lock nut
Sleeve d1 d B3 B4 D1 D2 a b f G (kg)
AH3120 95 100 64 68 104.5 104 14 11 4 M110x2 0.65 KM22
AH3122 105 110 68 72 114.8 114 14 11 4 M120x2 0.76 KM24
AH3124 115 120 75 79 125.3 124 15 12 4 M130x2 0.95 KM26
AH3126 125 130 78 82 135.6 135 15 12 4 M140x2 1.08 KM28
AH3128 135 140 83 88 145.9 145 17 14 4 M150x2 1.28 KM30
AH3130 145 150 96 101 156.9 156 18 15 4 M165x3 1.79 KM33
AH3132 150 160 103 108 167.4 166 19 16 5 M180x3 2.87 KM36
AH3134 160 170 104 109 177 176 19 16 5 M190x3 3.04 KM38
AH3136 170 180 116 122 188.3 187 22 19 5 M200x3 3.76 KM40
AH3138 180 190 125 131 198.8 197 26 20 5 T210x4 4.89 HM42
AH3140 190 200 134 140 209.4 208 27 21 5 T220x4 5.49 HM44
AH3144 200 220 145 151 230.2 229 29 23 5 T240x4 10.4 HM48
AH3148 220 240 154 161 250.8 249 31 25 5 T260x4 12 HM52
AH3152 240 260 172 179 272.3 271 32 26 6 T290x4 16.2 HM58
AH3156 260 280 175 183 292.4 291 34 28 6 T310x5 17.5 HM62
AH3160 280 300 192 200 313.7 312 36 30 6 T330x5 20.8 HM66
AH3164 300 320 209 217 335 334 37 31 6 T350x5 24.5 HM70
AH3168 320 340 225 234 356.3 355 39 33 6 T370x5 29 HM74
AH3172 340 360 229 238 376.4 375 41 35 6 T400x5 33 HM80
AH3176 360 380 232 242 396.7 395 42 36 6 T420x5 35.7 HM84
AH3180 380 400 240 250 417.2 416 44 38 6 T440x5 39.5 HM88
AH3192 440 460 285 296 480.6 479.5 49 43 8 T510x6 57.9 HM102
AH3196 460 480 295 307 501.3 500 51 45 8 T530x6 63.1 HM106
