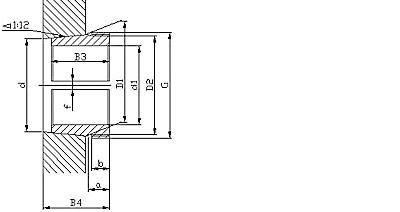

| Adapter | Dimensions(mm) | Weight | Lock nut | |||||||||
| Sleeve | d1 | d | B3 | B4 | D1 | D2 | a | b | f | G | (kg) | |
| AH3218 | 85 | 90 | 63 | 67 | 94.5 | 94 | 13 | 10 | 3 | M100x2 | 0.576 | KM20 |
| AH3219 | 90 | 95 | 67 | 71 | 99.75 | 99 | 14 | 11 | 4 | M105x2 | 0.65 | KM21 |
| AH3220 | 95 | 100 | 73 | 77 | 105.3 | 104.5 | 14 | 11 | 4 | M110x2 | 0.767 | KM22 |
| AH3222 | 105 | 110 | 82 | 86 | 116 | 115.5 | 14 | 11 | 4 | M125x2 | 0.88 | KM25 |
| AH3224 | 115 | 120 | 90 | 94 | 126.5 | 126 | 16 | 13 | 4 | M135x2 | 1.11 | KM27 |
| AH3226 | 125 | 130 | 98 | 102 | 137 | 136.5 | 18 | 15 | 4 | M145x2 | 1.58 | KM29 |
| AH3228 | 135 | 140 | 104 | 109 | 147.6 | 147 | 18 | 15 | 4 | M155x3 | 1.84 | KM31 |
| AH3230 | 145 | 150 | 114 | 119 | 158.3 | 157.5 | 20 | 17 | 4 | M165x3 | 2.22 | KM33 |
| AH3232 | 150 | 160 | 124 | 130 | 168.9 | 167 | 23 | 20 | 5 | M180x3 | 4.08 | KM36 |
| AH3234 | 160 | 170 | 134 | 140 | 179.4 | 178 | 27 | 24 | 5 | M190x3 | 4.8 | KM38 |
| AH3236 | 170 | 180 | 140 | 146 | 189.9 | 188 | 27 | 24 | 5 | M200x3 | 5.32 | KM40 |
| AH3238 | 180 | 190 | 145 | 152 | 200.1 | 199 | 31 | 25 | 5 | T210x4 | 5.9 | KM42 |
| AH3240 | 190 | 200 | 153 | 160 | 210.8 | 209 | 31 | 25 | 5 | T220x4 | 6.68 | KM44 |
| AH3260 | 280 | 300 | 228 | 236 | 316.3 | 315 | 40 | 34 | 6 | T330x5 | 26 | KM66 |
| AH3264 | 300 | 320 | 246 | 254 | 337.7 | 336 | 42 | 36 | 6 | T350x5 | 30.6 | KM70 |
| AH3268 | 320 | 340 | 264 | 273 | 359.1 | 358 | 44 | 38 | 6 | T370x5 | 35.4 | KM74 |
| AH3272 | 340 | 360 | 274 | 283 | 380 | 378 | 46 | 40 | 6 | T400x5 | 41.5 | KM80 |
| AH3276 | 360 | 380 | 284 | 294 | 400.5 | 399 | 48 | 42 | 6 | T420x5 | 45.6 | KM84 |
| AH3280 | 380 | 400 | 302 | 312 | 421.8 | 420 | 50 | 44 | 6 | T440x5 | 51.7 | KM88 |
| AH3284 | 400 | 420 | 321 | 331 | 443.3 | 442 | 52 | 46 | 8 | T460x5 | 58.9 | KM92 |
| AH3288 | 420 | 440 | 330 | 341 | 463.9 | 462 | 54 | 48 | 8 | T480x5 | 63.8 | KM96 |
| AH3292 | 440 | 460 | 349 | 360 | 485.3 | 484 | 56 | 50 | 8 | T510x6 | 74.5 | KM102 |
| AH3296 | 460 | 480 | 364 | 376 | 506.5 | 505 | 58 | 52 | 8 | T530x6 | 82.1 | KM106 |
