AH2300

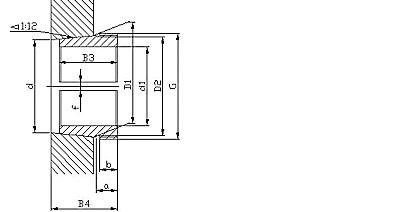

Adapter	Dimensions(mm)										Weight	Lock nut
Sleeve	d1	d	B3	B4	D1	D2	a	b	f	G	(kg)	Lock nut
AH2308	35	40	40	43	42.76	42	10	7	2	M45x1.5	0.128	KM09
AH2309	40	45	44	47	48.08	47.5	10	7	2	M50x1.5	0.164	KM10
AH2310	45	50	50	53	53.5	52	12	9	2	M55x2	0.209	KM11
AH2311	50	55	54	57	58.67	57	13	10	3	M60x2	0.253	KM12
AH2312	55	60	58	61	63.92	62	14	11	3	M65x2	0.297	KM13
AH2313	60	65	61	64	69.08	68.5	15	12	3	M75x2	0.395	KM15
AH2314	65	75	64	68	74.42	73.5	15	12	3	M80x2	0.466	KM16
AH2315	70	80	68	72	79.75	79	15	12	3	M85x2	0.534	KM17
AH2316	75	85	71	75	85	84.5	15	12	3	M90x2	0.597	KM18
AH2317	80	90	74	78	90.17	89.5	16	13	3	M95x2	0.69	KM19
AH2318	85	95	79	83	95.5	95	17	14	3	M100x2	0.779	KM20
AH2319	90	100	85	89	100.8	100	19	16	4	M105x2	0.886	KM21
AH2320	95	105	90	94	106.3	105.5	19	16	4	M110x2	0.998	KM22
AH2322	105	110	98	102	116.9	116	19	16	4	M125x2	1.35	KM25
AH2324	115	120	105	109	127.4	126.5	20	17	4	M135x2	1.6	KM27
AH2326	125	130	115	119	138.1	137.5	22	19	4	M145x2	1.97	KM29
AH2328	135	140	125	130	148.9	148	23	20	4	M155x3	2.33	KM31
AH2330	145	150	135	140	159.4	158.5	27	24	4	M165x3	2.82	KM33
AH2332	150	160	140	146	169.9	168	27	24	5	M180x3	4.72	KM36
AH2334	160	170	146	152	180.4	179	27	24	5	M190x3	5.25	KM38
AH2336	170	180	154	160	189.9	189	29	26	5	M200x3	5.83	KM40
AH2338	180	190	160	167	201.3	200	32	26	5	T210x4	6.63	KM42
AH2340	190	200	170	177	211.8	210	36	30	5	T220x4	7.54	KM44
AH2344	200	220	181	189	232.8	231	36	30	5	T240x4	13.5	KM48
AH2348	220	240	189	197	253.4	252	36	30	5	T260x4	15.5	KM52
AH2352	240	260	205	213	274.8	273	36	30	6	T290x4	19.6	KM58
AH2356	260	280	212	220	295.3	294	36	30	6	T310x5	21.6	KM62
