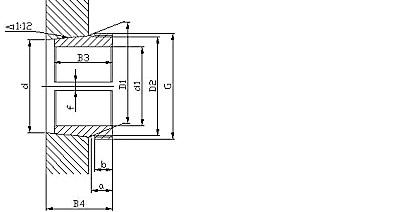

| Adapter Sleeve | Dimensions(mm) | Weight (kg) | Lock nut | |||||||||
| d1 | d | B3 | B4 | D1 | D2 | a | b | f | G | |||
| AH308 | 35 | 40 | 29 | 32 | 41.92 | 41 | 9 | 6 | 2 | M45x1.5 | 0.09 | KM09 |
| AH309 | 40 | 45 | 31 | 34 | 47.08 | 46.5 | 9 | 6 | 2 | M50x1.5 | 0.109 | KM10 |
| AH310 | 45 | 50 | 35 | 38 | 52.33 | 51.5 | 10 | 7 | 2 | M55x2 | 0.137 | KM11 |
| AH311 | 50 | 55 | 37 | 40 | 57.5 | 56.5 | 10 | 7 | 3 | M60x2 | 0.161 | KM12 |
| AH312 | 55 | 60 | 40 | 43 | 62.67 | 61.5 | 11 | 8 | 3 | M65x2 | 0.189 | KM13 |
| AH313 | 60 | 65 | 42 | 45 | 67.83 | 67 | 11 | 8 | 3 | M75x2 | 0.253 | KM15 |
| AH314 | 65 | 70 | 43 | 47 | 73 | 72.5 | 11 | 8 | 3 | M80x2 | 0.28 | KM16 |
| AH315 | 70 | 75 | 45 | 49 | 78.17 | 77.5 | 11 | 8 | 3 | M85x2 | 0.313 | KM17 |
| AH316 | 75 | 80 | 48 | 52 | 83.42 | 82.5 | 11 | 8 | 3 | M90x2 | 0.365 | KM18 |
| AH317 | 80 | 85 | 52 | 56 | 88.67 | 88 | 12 | 9 | 3 | M95x2 | 0.429 | KM19 |
| AH318 | 85 | 90 | 53 | 57 | 93.75 | 93 | 12 | 9 | 3 | M100x2 | 0.461 | KM20 |
| AH319 | 90 | 95 | 57 | 61 | 99 | 98.5 | 13 | 10 | 4 | M105x2 | 0.532 | KM21 |
| AH320 | 95 | 100 | 59 | 63 | 104.2 | 103.5 | 13 | 10 | 4 | M110x2 | 0.582 | KM22 |
| AH322 | 105 | 110 | 63 | 67 | 114.3 | 113.5 | 15 | 12 | 4 | M120x2 | 0.663 | KM24 |
| AH324 | 115 | 120 | 69 | 73 | 124.8 | 124 | 16 | 13 | 4 | M130x2 | 0.875 | KM26 |
| AH326 | 125 | 130 | 74 | 78 | 135.1 | 134.5 | 17 | 14 | 4 | M140x2 | 1.03 | KM28 |
| AH328 | 135 | 140 | 77 | 82 | 145.4 | 144.5 | 17 | 14 | 4 | M150x2 | 1.15 | KM30 |
| AH330 | 145 | 150 | 83 | 88 | 155.8 | 155 | 18 | 15 | 4 | M165x3 | 1.55 | KM33 |
| AH332 | 150 | 160 | 88 | 93 | 166.2 | 165 | 19 | 16 | 5 | M180x3 | 2.73 | KM36 |
| AH334 | 160 | 170 | 93 | 98 | 176.5 | 175 | 20 | 17 | 5 | M190x3 | 3.2 | KM38 |
