| Bearing No. | Boundary Dimensions（mm inch） | Basic Load Rating(N) | Weight | ||||||||||
| 轴承型号 | 外形尺寸 | 额定负荷 | 重量 | ||||||||||
| Dynamic | Static | Kg(pc) | |||||||||||

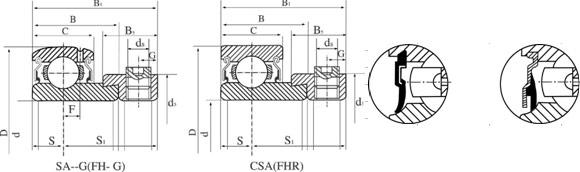

| d | D | B1 | B | C | S | ds | G | B5 | ds | Cr | Cor | ||
| SA201 | 12 | 40 | 28.6 | 19.1 | 12 | 6.5 | M6×0.75 | 4.8 | 13.5 | 28.6 | 7360 | 4480 | 0.12 |
| SA201-8 | 1/2 | 1.5748 | 1.126 | 0.752 | 0.4724 | 0.256 | 1/4-28UNF | 0.189 | 0.531 | 1.126 | 0.12 | ||
| SA202 | 15 | 47 | 28.6 | 19.1 | 12 | 6.5 | M6×0.75 | 4.8 | 13.5 | 28.6 | 7360 | 4480 | 0.1 |
| SA202-10 | 5/8 | 0.1 | |||||||||||
| SA203 | 17 | 47 | 28.6 | 19.1 | 12 | 6.5 | M6×0.75 | 4.8 | 13.5 | 28.6 | 7360 | 4480 | 0.09 |
| SA203-11 | 11/16 | 1.5748 | 1.126 | 0.752 | 0.4724 | 0.256 | 1/4-28UNF | 0.189 | 0.531 | 1.126 | 0.09 | ||
| SA204 | 20 | 47 | 31 | 21.5 | 14 | 7.5 | M6×0.75 | 4.8 | 13.5 | 33.3 | 9880 | 6200 | 0.16 |
| SA204-12 | 3/4 | 1.8504 | 1.22 | 0.8465 | 0.5512 | 0.295 | 1/4-28UNF | 0.189 | 0.531 | 1.311 | 0.16 | ||
| SA205 | 25 | 52 | 31 | 21.5 | 15 | 7.5 | M6×0.75 | 4.8 | 13.5 | 38.1 | 10780 | 6980 | 0.2 |
| SA205-13 | 13/16 | 2.0472 | 1.22 | 0.8465 | 0.596 | 0.295 | 1/4-28UNF | 0.189 | 0.531 | 1.5 | 0.22 | ||
| SA205-14 | 7/8 | 0.21 | |||||||||||
| SA205-15 | 15/16 | 0.21 | |||||||||||
| SA205-16 | 1 | 0.2 | |||||||||||
| SA206 | 30 | 62 | 35.7 | 23.8 | 16 | 9 | M6×0.75 | 6 | 15.9 | 44.5 | 14970 | 10040 | 0.3 |
| SA206-17 | 1 3/16 | 2.4409 | 1.406 | 0.937 | 0.6299 | 0.354 | 1/4-28UNF | 0.236 | 0.626 | 1.752 | 0.32 | ||
| SA206-18 | 1 1/8 | 0.31 | |||||||||||
| SA206-19 | 1 3/16 | 0.3 | |||||||||||
| SA206-20 | 1 1/4 | 0.29 | |||||||||||
| SA207 | 35 | 72 | 38.9 | 25.4 | 17 | 9.5 | M8×1 | 6.8 | 17.5 | 55.6 | 19750 | 13670 | 0.42 |
| SA207-20 | 1 1/4 | 2.8346 | 1.531 | 1 | 0.6693 | 0.374 | 5/16-28UNF | 0.268 | 0.689 | 2.189 | 0.46 | ||
| SA207-21 | 1 5/16 | 0.43 | |||||||||||
| SA207-22 | 1 3/8 | 0.42 | |||||||||||
| SA207-23 | 1 7/16 | 0.41 | |||||||||||
| SA208 | 40 | 80 | 43.7 | 30.2 | 18 | 11 | M8×1 | 6.8 | 18.3 | 60.3 | 22710 | 15940 | 0.6 |
| SA208-24 | 1 1/2 | 3.1496 | 1.721 | 1.189 | 0.7087 | 0.433 | 5/16-24UNF | 0.268 | 0.72 | 2.374 | 0.58 | ||
| SA208-25 | 1 9/16 | 0.6 | |||||||||||
| SA209 | 45 | 85 | 43.7 | 30.2 | 19 | 11 | M8×1 | 6.8 | 18.3 | 63.5 | 24360 | 17710 | 0.76 |
| SA209-26 | 1 5/8 | 3.3465 | 1.721 | 1.189 | 0.748 | 0.433 | 5/16-24UNF | 0.268 | 0.72 | 2.5 | |||
| SA209-27 | 1 11/16 | ||||||||||||
| SA209-28 | 1 3/4 | ||||||||||||
| SA210 | 50 | 90 | 43.7 | 30.2 | 20 | 11 | M8×1 | 6.8 | 18.3 | 69.9 | 26980 | 19840 | 0.91 |
| SA210-29 | 1-13/16 | 3.5433 | 1.721 | 1.189 | 0.7874 | 0.433 | 5/16-24UNF | 0.268 | 0.72 | 2.752 | |||
| SA210-30 | 1 7/8 | ||||||||||||
| SA210-31 | 1-15/16 | ||||||||||||
| SA210-32 | 2 | ||||||||||||
| SA211 | 55 | 100 | 48.4 | 32.5 | 21 | 12 | M8×1 | 8 | 20.7 | 76.2 | 33370 | 25110 | 1.26 |
| SA211-32 | 2 | 3.937 | 1.906 | 1.2795 | 0.8268 | 0.472 | 5/16-24UNF | 0.315 | 0.815 | 3 | |||
| SA211-33 | 2 1/16 | ||||||||||||
| SA211-34 | 2 1/8 | ||||||||||||
| SA211-35 | 2 3/16 | ||||||||||||
| SA212 | 60 | 110 | 53.1 | 37.2 | 22 | 13.5 | M10×1 | 8 | 22.3 | 84.2 | 36740 | 27970 | 1.7 |
| SA212-36 | 2 1/4 | 4.3307 | 2.091 | 1.4646 | 0.8661 | 0.532 | 3/8-24UNF | 0.315 | 0.878 | 3.315 | |||
| SA212-37 | 2 5/16 | ||||||||||||
| SA212-38 | 2 3/8 | ||||||||||||
| SA212-39 | 2 7/16 | ||||||||||||
